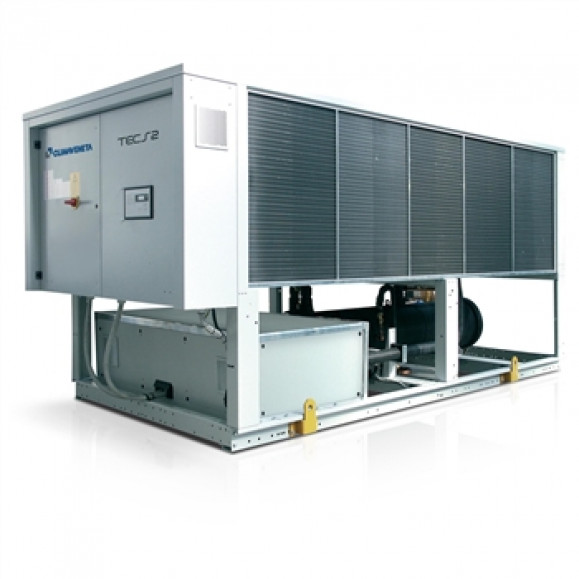

TECS2 0211-1154

High efficiency chiller, air source for outdoor installation
Capacity cooler 220 – 1324 kW

NECS 0202T - 0612T
Outdoor unit for the production of chilled water featuring oil-free centrifugal compressor, with R134a, axial-flow fans, condensing coil with copper tubes and aluminium fins, shell and tube flooded evaporator and electronic regulation valve. Base and supporting structure and panels are of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation together with the use of inverter technology. The compressor is radically innovative: magnetic bearings and digital rotor speed control allow partial load efficiency levels to be reached that were hither to impossible.


Version

SL-CA – Super Low noise version, Class A of efficiency
XL-CA – eXtra Low noise version, Class A of efficiency
SL-CA-E – Super Low noise version, Premium efficiency, Class A enhanced



Configurations

Basic function
D – Partial condensing heat recovery function

Features

  • VERY HIGH EFFICIENCY
    Very high efficiency at full and partial load, to top market levels, thanks to adopted technological solutions: large capacity modulation and expanded exchanger, offering minimum running costs of the unit in real working conditions.
  • VERSION ´CA-E´ AVAILABLE
    The version ´CA-E´ is characterized by efficiency beyond the ´Class A´ for Eurovent. The technological choices adopted assure the minimization of operating costs and therefore a quick payback time.
  • EXTREMELY SILENT OPERATION
    As result of a sistematic design oriented to minimize the noise level, XL version´s units give the best compromise between silence and efficiency on the market.
  • LOW INRUSH CURRENTS
    Reduced breakaway starting currents thanks to the revolutionary centrifugal compressor.

Accessory

  • VPF (Variable Primary Flow) kit: variable flow pumps with on board regulation
  • Hydronic group
  • EC fans with electronic DC brushless motor
  • Set-up for remote connectivity with ModBus/Echelon protocol cards

Controls

  • W3000SE Large
    The controller W3000 large offers the latest control and functions specially developed for these units. The keypad is generously sized with full operating status display. The controls and detailed LCD make access to machine settings easy and safe. These resources permit to diirectly act on the unit settings through a multilevel menu, available in several languages. The diagnostics includes full management of alarms with black-box functions and alarm record for better analysis of unit performance. For multi-units plants a special device to coordinate and manage all the resources is available as an option; energy metering device is even possible as an option. Supervision is easy through Climaveneta devices or with various options for interfacing to ModBus, Bacnet, Echelon LonTalk protocols. Compatibility with remote keyboard (management up to 10 units). Clock available with programming of operation (standard 4 days and 10 time bands). Temperature regulation features the continuous capacity modulation, based on PID algorithms referring to water leaving temperature. This is combined with the compressors´ on/off management with a proportional logic on the return water temperature. As option is possible to choose the VPF system control integrated on-board to the units.
