CLIMAVENETA RACK

High quality cabinets for the protection and housing of servers

NECS 0202T - 0612T

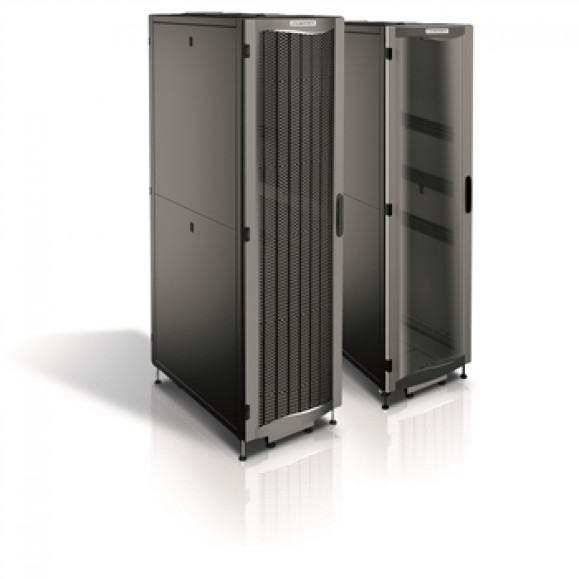

CLIMAVENETA RACK are floor-standing cabinets suitable for the housing of the server. The supporting structure is made ​​of sheet steel with a thickness of 20/10 and can reach a capacity of 2000 kg. The cabinet is fully inspected and adaptable to all environments. Equipped with 4 wheels for easy handling and adjustable feet. ADVANTAGES: – Strong and sturdy – Can be dismantled in a few minutes – Suitable for different kinds of servers – Easily access to cables

Version

  • GLASS – Cabinet with front door with tempered GLASS 4mm rounded, complete with handle with key lock quarter turn with 4 locking points. Possibility of reversing the direction of the door opening. BLIND double swing rear door with lock quarter-turn and three locking points.
  • GRILL – Cabinet with front door ventilated (GRILL) and rounded complete with handle with key lock quarter turn with 4 locking points. Possibility of reversing the direction of the door opening. Rear door double doors ventilated (GRILL) with quarter-turn lock and three locking points.
  • HYBRID – Cabinet with front door with tempered GLASS 4mm rounded full handle with key lock quarter turn with 4 locking points. Possibility of reversing the direction of the door opening. Rear door ventilated (GRILL) double doors with lock quarter-turn and three locking points.

Features

  • Glass frontal door or with perforated mesh (drilled more than 80%) – Rear double doors with perforated mesh (drilled more than 80%) or blind – Side panels and bottom are not included, see options – Painted with black epoxy powders (RAL 9005) – Capacity 2000 kg – 20 / 10 supporting sheet thickness – 4 adjustable feet – 4 swivel castors integrated – IP20 protection rating – Complete with two front and two rear uprights – Earthing-ready – Doors with locked handles
  • DIMENSIONS: – Depth 800 mm or 1000 mm or 1200 mm – Width 600 mm or 800 mm – Height 42U (2100 mm ) or 47U (2300 mm)
