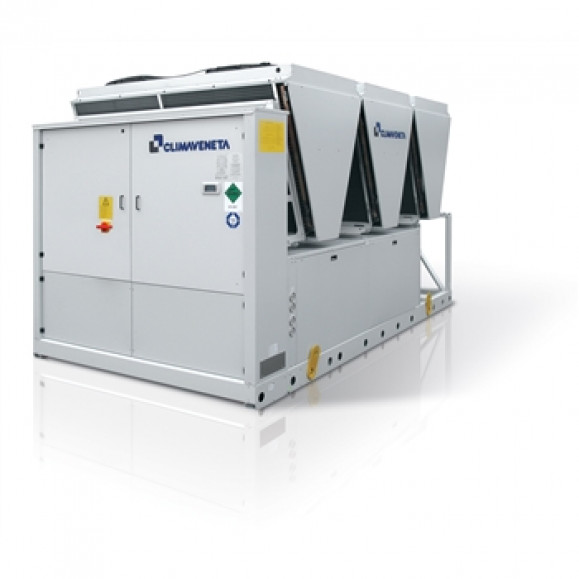

NECS-NR 1314 – 3218

Reversible unit, NRG line, total heat recovery, air source for outdoor installation Cooling capacity 332 – 850 kW

NECS 0202T - 0612T
Air-cooled reversible unit with total heat recovery for the simultaneous production of chilled/hot water with hermetic rotary Scroll compressors, with R410A, axial fans, shell and tube heat exchangers and electronic expansion valve. The range is composed by units equipped with four, six and eight compressors in multi-circuit configuration.

Version

  • B – Basic
  • CA – Class A of efficiency
  • SL-CA – Super Low noise version, Class A of efficiency

Features

  • REFRIGERANT GAS R410A
    The use of R410A allowed to achive better energy efficiencies with environment full respect (ODP = 0)
  • HOT WATER SUPPLY
    Production of domestic hot water up to 55 °C in both summer and winter operating conditions, offering maximum versatility with respect to different plant engineering solutions.
  • CLASS A EFFICIENCY
    The full range is also available with the Class A efficiency rating (in heating). NECS-NR/CA and NECS-NR/SL-CA guaranty premium levels of efficiency thanks to the generous sizing of the refrigerant-exchange surface areas and to an accurate control of the fans, available on both standard and low-noise versions.
  • INTEGRATED HYDRONIC GROUP
    The built-in hydronic module already contains the main water circuit components; it is available with single or twin in-line pump, for achieving both low or high head, available for both plant and recovery circuits (up to 4 pumps).

Accessory

  • Remote control keyboard (distance to 200m and to 500m)
  • Soft starters
  • Set-up for remote connectivity with ModBus, Echelon LonTalk, Bacnet protocol board
  • LT kit for extending the operating limits in heat pump mode down to -10 °C (/SL-CA versions) and -12 °C (/CA versions)

Controls

  • W3000SE Large
    The W3000SE Large controller offers advanced functions and algorithms. The keypad features an easy-to-use interface and a complete LCD display, allowing to consult and intervene on the unit by means of a multi-level menu, with selectable language setting. The regulation operates on both water circuits featuring the step-wise regulation referred to the return water temperature with proportional logic. This allows to satisfy simultaneously the different requests of both cooling and heating, according to the selected operation mode. The diagnostics includes a complete alarm management, with the “black-box” and alarm logging functions for enhanced analysis of the unit operation. For multiple units’ systems, the regulation of the resources, via optional proprietary devices, can be implemented. Energy metering, for both consumption and capacity, can also be developed. Supervision can be easily developed via proprietary devices or the integration in third party systems by means of the most common protocols as ModBus, Bacnet, Bacnet-over-IP, Echelon LonWorks. Compatibility with the remote keyboard managing up to 10 units. Availability of an internal real time clock for operation scheduling (4-day profiles with 10 hour belts). The defrost adopts a proprietary self-adaptive logic, which features the monitoring of numerous operational parameters. This allows to reduce the number and duration of the defrost cycles, with a benefit for the overall energy efficiency.
