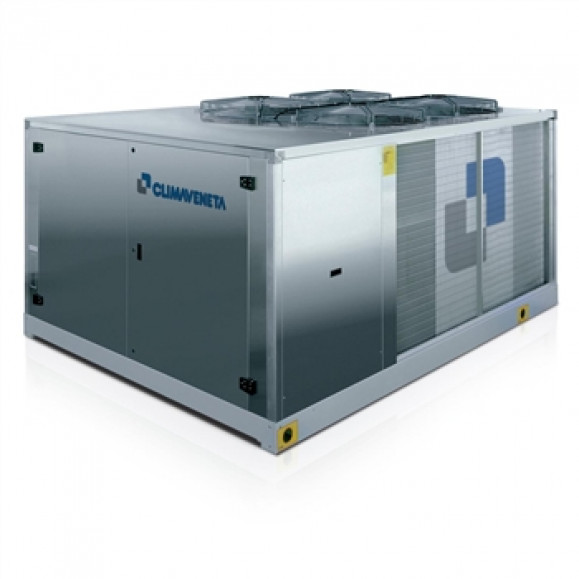

MCAT 0501 – 1422

Condensing unit
Cooling capacity 110 – 351 kW

NECS 0202T - 0612T
Outdoor split-system unit for connection with direct expansion coils or remote exchangers. Semi-hermetic reciprocating compressors, axial-flow fans, liquid receiver, compressor inlet and outlet valves with servicing plugs and liquid tap. External panels in Peraluman and base in galvanised sheet steel with paint finish. Refrigerant R407C, units with 1 or 2 compressors, single or double circuits.


Version

B – Basic
HT – High efficiency, high outdoor temperature version
LN – Low noise
SL – Super-low noise version

Features

  • TOTAL VERSATILITY
    Condensing units available in 4 versions, designed to satisfy all service system and application requirements.
  • SEMI-HERMETIC RECIPROCATING COMPRESSORS
    The MCAT units are fitted with semi-hermetic reciprocating compressors with the possibility of extra capacity control step
  • INCORPORATED LIQUID RECEIVER
    Standard units are all fitted with liquid receiver to ensure best operation of the condensing section
