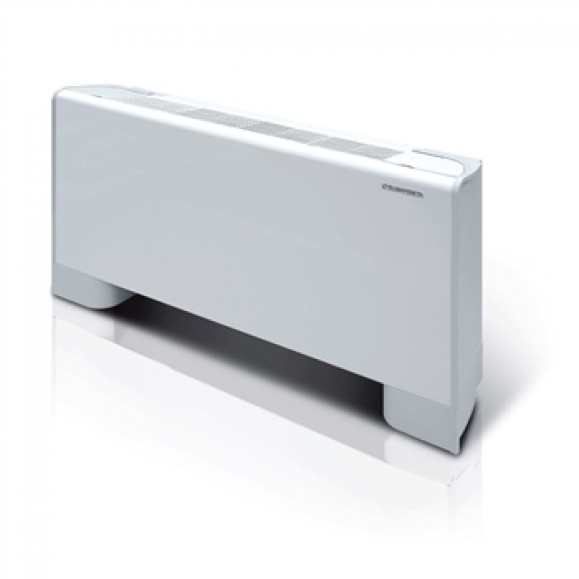

i-LIFE2 0202 – 1004

Professional fan-coil with cabinet or buit-in version, powered by EC Brushless Centrifugal Fan Total capacity in cooling mode 2,00 – 7,50 kW

NECS 0202T - 0612T

New i-LIFE2 fancoil is powered by a modulating speed centrifugal fan. This new concept of fancoil operates with continuous air flow regulation assuring the best comfort and a concrete energy savings. Thanks to the different versions, with cabinet or buit-in, low air intake or front air intake, vertical or horizontal installation, it results very easy to find the perfect solution for any requirement . A dedicated range of controllers allows a user friendly and complete regulation of all the functions, and an easy integration in home automation, centralization and Building Management Systems.

Version

  • DLMV – version with cabinet, low air intake, vertical installation
  • DLMO – version with cabinet, low air intake, horizontal installation
  • DFMV – version with cabinet, front air intake, vertical installation
  • DFMO – version with cabinet, front air intake, horizontal installation
  • DLIV – built-in version, low air intake, vertical installation.
  • DLIO – built-in version, low air intake, horizontal installation
  • DFIV – built-in version, front air intake, vertical installation
  • DFIO – built-in version, front air intake, horizontal installation

Features

  • High efficiency EC motor. Modulating speed centrifugal fan and air flow regulation. Energy consumption reduced by more than 50%
  • Coils with aluminium fins and copper pipes.
  • Configurations for 2 and 4 pipe Systems.
  • Left-hand water connections, easy convertible into right-hand, by simply turning the coil
  • Air filter on all models.
  • Automatically closing flap to cover and protect electric controls from dripping water (in conformity with directive 60335-2-40).
  • Elegant cover structure that integrates the use of high quality plastic materials, with traditional galvanized and precoated materials.
  • Structure in galvanised steel of high thickness for maximum resistance to rust;
  • Auxiliary drain pan with thermal insulation for all Horizontal versions, made of galvanized steel.
  • Plastic drain pan for all Vertical versions.

Accessory

  • Hot water coil kit
  • Kit RS485 – interface for Building Management System
  • Kit control board to manage 0-10V or 3 points modulating valve unit
  • Main coil 2-way/3-way valve unit
  • Additional coil 2-way/3-way valve unit
  • Kit LIFE2 BOX
  • Kit Gateway interface for MyHome Bticino System
  • Air intake grille kit with version cover
  • Straight and angular (90°) plenum kits for air outlet
  • Plenum kit with round, straight or 90° air ducts.
  • Straight and angular (90°) plenum kits for air inlet
  • Heating element kit
  • Horizontal and vertical fan coil auxiliary tray

Controls

  • EK plug-in control /EKW wall mounted control
    User interface for selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control of main and additional coil valve unit (summer/winter – 2 and 4 pipes installation) . Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points . Air and water temperature probe. Multifunction digital input configurable by user. Configuration dip switch. Modbus protocol for installation in BMS (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE fan coil units. Easy control installation thanks to 2 wires connection.
  • iK control with LCD screen
    Interface with LCD screen with user-friendly icons. Control kit for universal installation: wall-mounted as well as plug-in. Selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control iK could function manually or with weekly timer regulation configurable by the customer. Control of main coil valve unit (summer/winter – 2 pipes) and additional coil (winter – 4 pipes). Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points (supply 230 VAC or 24V) . Parameters configurable directly by user. Modbus protocol for installation in Building Management System (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE2 fan coil units. Easy control installation thanks to 2 wires connection through HB power board
  • Remote control
    Set-point regulation. Selection of functioning mode (cool, heat, dehumidify, fan), fan speed (Max, Med, Min, AUTO). User-sfriendly compact remote control with fine aethetics.
  • AT-EC plug-in control/ATW-EC wall mounted control
    User interface for selection of functioning mode (Off/Summer/Winter/Auto), fan speed (Max,Med,Min,Auto), and temperature set. Control of main and additional coil valve unit. (summer/winter 2 and 4 pipes installation). Managment of traditional ON/OFF valve unit. Air and water temperature probe. Multifuncion digital input configurable by user. Configuration dip switch. The controls can not be connected to BMS system.
