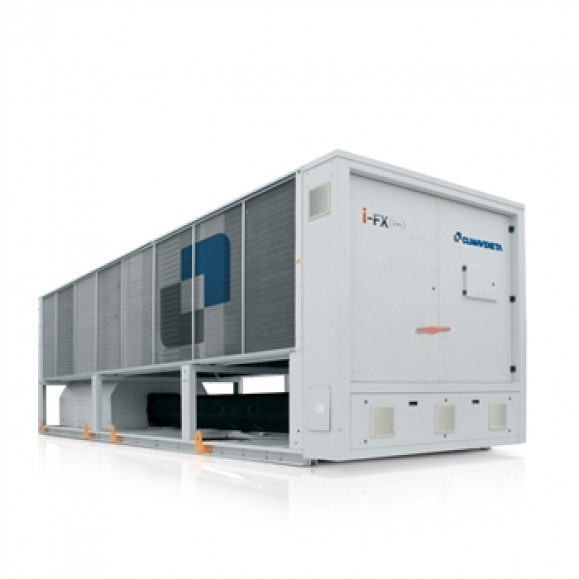

i-FX (1+i) 2602 – 5403

High efficiency chiller, air source for outdoor installation
Cooling capacity 567 – 1273 kW

NECS 0202T - 0612T
Outdoor unit for the production of chilled water with fixed speed and variable speed (Inverter Driven) screw compressors optimized for R134a, axial-flow fans, condensing coil with copper tubes and aluminium fins, shell and tube single pass evaporator designed by Climaveneta and electronic expansion valve. Eurovent certification for all the sizes. Base and supporting structure and panels are of galvanized epoxy powder coated steel. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise temperature control together with the use of inverter technology. The high performance’s level, both full and partial load, is achieved thanks to the accurate unit’s design and to the use of fixed speed motor together with variable speed (inverter) motor.


Version

CA – Class A of efficiency
SL – Super-low noise version



Configurations

Basic function
D – Partial condensing heat recovery function
R – Total condensing heat recovery function

Features

  • WIDE RANGE
    Extended capacity range.
  • HIGH EFFICIENCY
    Unit with high efficiency and reduced energy consumption, thanks to the inverter technology, contributing to lower operating costs and therefore achieving a quick return on investment.
  • EXTREMELY SILENT OPERATION
    Extremely silent operation together with high efficiency, tank to dedicated acoustic devices and a precise design for the choice of the components.
  • GREEN RELEVANT PRODUCT
    These units comply with the minimum efficiency requirements of air cooled chillers defined in ASHRAE 90.1-2013 ”Energy Standard for buildings except LowRise Residential Building”, included the higher values required from January 2015.

Accessory

  • Hydronic group
  • VPF (Variable Primary Flow) kit: variable flow pumps with on board regulation
  • NOISE REDUCER (only on no silenced versions)
  • EC fans with electronic DC brushless motor
  • Axial fans with External Static Pressure (ESP) up to 130 Pa.
  • Remote control keyboard (distance to 200m and to 500m)
  • Set-up for remote connectivity with ModBus/Echelon protocol cards

Controls

  • W3000TE
    The brand new W3000TE controller offers advanced functions and algorithms. The large format keyboard and the wide LCD display favour an easy and safe access to the machine setup and a complete view of unit’s staus. The assessment and intervention on the unit is managed through a multi-level menu, with selectable user’s language. The led icons immediately show the operating status of the circuits, as well as of the fans and of the water pumps (if present). An optional extra is the touch screen interface: 7.0” WVGA colour display with adjustable LED backlight and front USB port. The touch screen technology allows intuitive navigation between the various screens, safe access to the data with a three-level password protection as well as the graphic display of the performance of some monitored measurements. The diagnostics comprises a complete alarm management system, with “black box” (via PC) and alarm log functions (via display or also PC) for a better analysis of the unit performance. For the systems made of several units, the adjustment of the resources is performed by optional proprietary devices. Consumption metering and performance measurement are possible as well. Supervision can be easily developed via proprietary devices or the integration in third party systems by means of the most common protocols as ModBus, Bacnet-over-IP, Echelon LonWorks, Bacnet MS/TP protocols. Compatibility with the remote keyboard managing up to 8 units. The presence of the programmable timer allows the creation of an operating profile containing up to 4 typical days and 10 time bands. The control is characterized by the continuous modulation of the unit capacity, based on PID algorithms and referring to the water delivery temperature. Optionally (VPF package), capacity modulation can be integrated with hydraulic flow modulation, thanks to inverter-driven pumps and to specific resources for the hydraulic circuit.
