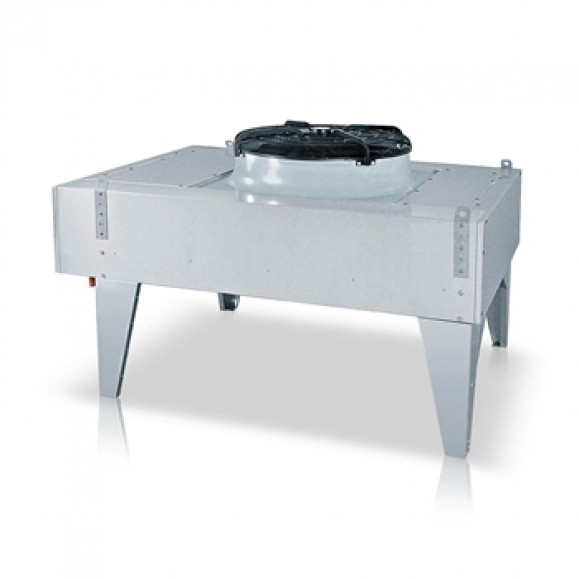

i-BDC 013m – 210m
Dry Cooler with EC axial fans
Rated capacity 14,0 – 210 kW
Dry Cooler with EC axial-type fan(s) for outdoor installation. Installation may be vertical with a horizontal air outflow or, using special brackets, horizontal with an upward air outflow. The very low noise, adjustable-speed fans are excellent for use in both technological and civil applications. BDC units operate with a single-phase 230V/1ph/50Hz and 400V/3ph/50Hz (only for i-BDC190m-210m)power supply totally independent and separate from the indoor unit ACCURATE. These units are therefore also suited for use without being directly connected to indoor units. i-BDC units are not provided with integrated fans speed regulator per standard. However, CLIMAVENETA can provide such fans speed regulator as OPTIONAL, by installing it directly inside the indoor unit ACCURATE.
BASIC – Basic
LN – Low noise
- HOUSING: designed to allowed easy access to internal components, is made from prepainted galvanized sheet steel, and it: • offers hight corrosion strenght and impact resistence; • is resistant at low temperatures; • is non toxic; • does not produce polluting debris; • is completely covered in a protective plastic film.
- ELECTRIC FANS of an axial type, statically and dynamically balanced on two levels, with blades in an inoxidable material and external rotor motor suitable for adjusting the speed, all mounted on a metal supporting grid in conformity with safety regulations. The motors are to VDE 0530-12.84. The protection rating is IP54 to DIN40050.
- HEAT EXCHANGER: the combination of innovative corrugated fins with the use of smooth pipes on the exchanger ensures excellent heat transfer with a minimum amount of fluid. The heat exchangers consist of aluminium fins and copper pipes.
- HYDRAULICS CIRCUIT CONNECTIONS are arranged along one side of the unite and are to be welded for safe connection that prevents any fluid leak.
- ISOLATING SWITCH, contained in an electric box with protection rating IP54, with switch control accessible from the outside and connecting terminals.
- Legs kit for vertical air flow
- Copper-Copper coil
- Epoxy coated coil (for fins only)
- Cataphoresys coil treatment
