Residential chillers and heat pumps

Climaveneta > Ancillary products

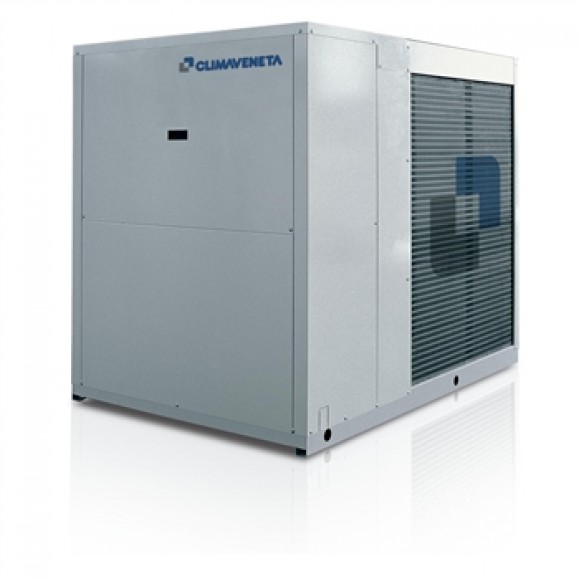

HCAT 0152 – 0604

Condensing unit
Cooling capacity 37,7 – 170 kW

NECS 0202T - 0612T
Outdoor split-system unit for connection with direct expansion coils or remote exchangers, with hermetic rotary scroll compressors, axial-flow fans, compressor inlet and outlet valves with servicing plugs and liquid tap. External panels in Peraluman and base in galvanised sheet steel with paint finish. Refrigerant R407C, units with two and four-compressors, two refrigerant circuits.


Version

B – Basic
HT – High efficiency, high outdoor temperature version
LN – Low noise
SL – Super-low noise version

Features

  • TOTAL VERSATILITY
    Condensing units available in 4 versions, designed to satisfy all service system and application requirements.
  • CONTINUAL FAN SPEED CONTROL
    The standard bi-compressor type HCAT units come fitted with continual fan speed control to guarantee more flexibility and adaptability
  • INTEGRAL SAFETY DEVICES
    Standard units are all fitted with high and low pressure switches, high-pressure safety valve and magnetothermal circuit breakers on loads (bi-compressor unit only)
