FX-FC 1502 – 6002

Air cooled chiller with free-cooling
Cooling capacity 332 – 1450 kW

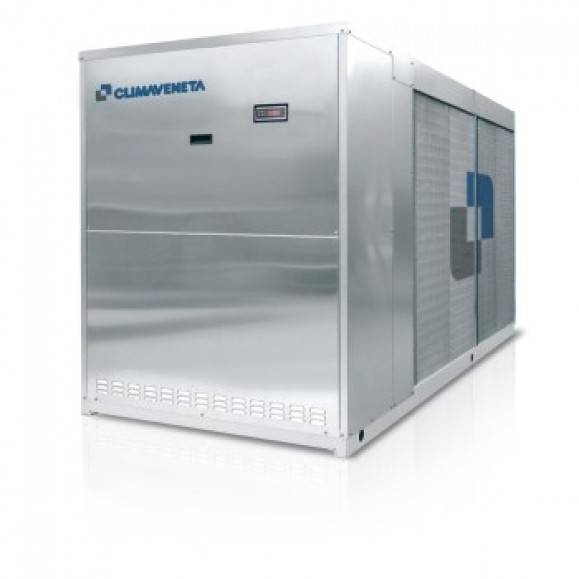

NECS 0202T - 0612T
Outdoor unit for the production of chilled water, equipped with semi-hermetic screw compressors, R134a refrigerant, axial-fans, condensing coil with copper tubes and aluminum fins, shell and tube evaporator single pass and electronic expansion valve. Base, supporting structure and panels are of galvanized epoxy powder coated steel. The unit is supplied with anti-freeze oil and refrigerant and has been factory tested. On-site installation therefore just involves making connections to the mains power and water supplies. The booster, a patent pending solution, allows to achieve high mechanical cooling efficiency. These chillers, fitted with free-cooling coils, are used in IT-cooling, industrial and civil applications, when the cooling load is constant all-year-round or the outdoor air temperature is lower than the temperature of the liquid return line. In free cooling mode, the liquid is cooled by outdoor air, thus lowering the load of the compressors until it is reduced to zero; this occurs already at positive outdoor temperature (T+ versions and SL-T+). The NG configuration complies with applications where it is not allowed or desired the use of ethylene glycol.


Version

T+ – Version with positive free-cooling temperature 100%
SL-T+ – Super low noise version with positive free-cooling temperature 100%



Configurations

Basic function
NG – Function for free-cooling without use of glycole

Features

  • ENERGY SAVING
    Energy saving guaranteed by free-cooling, which exploits the low external air temperatures; free-cooling control with optional modulating valve.
  • POSITIVE TEMPERATURE OF TOTAL FREE-COOLING
    Big heat exchangers surfaces: 100% free-cooling cooling load satisfied at positive environment temperature
  • WIDE RANGE
    Extended capacity range.
  • UNIQUE PROPOSAL – PATENT PENDING
    Booster function to increase chiller efficiency
  • INTEGRATED HYDRONIC GROUP
    The built-in hydronic group (optional) includes the main water circuit components. The 2 pumps are in twin configuration and available with 2 or 4-pole motor, fixed or variable speed, high or low head to satisfy all the different industrial and comfort application requirements.

Accessory

  • EC fans with electronic DC brushless motor
  • Modulating valve for water temperature control in Free-Cooling mode
  • Hydronic group
  • VPF (Variable Primary Flow) kit: variable flow pumps with on board regulation
  • Fast restart
  • Double power supply with automatic changeover (ATS) or motorized changeover
  • Compressor power factor correction
  • Set-up for remote connectivity with ModBus/Echelon protocol cards
  • Touch Screen visual display
  • Remote control keyboard (distance to 200m and to 500m)
  • NOISE REDUCER (only on no silenced versions)

Controls

  • W3000SE Large
