POMPE DE CALDURA, AER CONDITIONAT, CHILLER

Residential chillers and heat pumps

Climaveneta > Management and control systems

FWS3

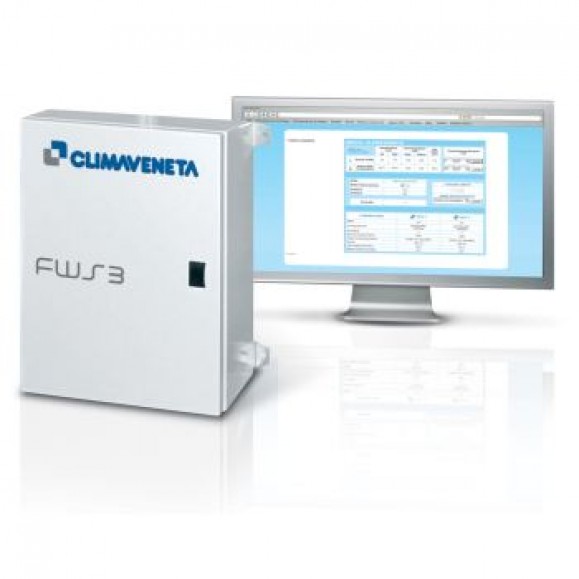

Supervisory device FWS3

NECS 0202T - 0612T

FWS 3 is an appliance used to supervise a single Climaveneta chiller, heat pump, intergra or rooftop units. It allows units to be monitored without the need to install any additional software to the dedicated supervision PC´s. The web pages contained in the FWS 3, displaying information concerning the unit and allowing commands to be sent, can be viewed using a web browser which is normally pre-installed to the PC or freely downloadable from the Internet. Basic applications are available for the various types of unit. The supervision web pages of each unit type were given a similar structure in order to facilitate the user. It is supplied in an industrial box complete with all components. The FWS 3 dialogues with the local PC via an Ethernet network cable, while a RS485 serial connection is used to communicate with the units. Various additional appliances, to be chosen according to the characteristics, needs and availability of remote connection at the place of installation of the units, can be supplied in the same industrial box as the FWS 3: modem/router for connection to a fixed ADSL line, modem for connection to a fixed PSTN, modem for connection to GPRS.



Version

Base version

Features

  • – Ease of installation thanks to the all-in-one solution
  • – Simplicity of use – web pages are easy to surf thanks to the popularity of the Internet
  • – Reliability thanks to the use of tried and tested networks and protocols
  • – Security – password-protected data access
  • – Access from anywhere in the world
  • – Management of an additional serial connection for the integration of existing BMS
  • – Charts for monitoring the progress of various measurement data
  • – Possibility to enable the fault reporting to the authorised Service Centre
