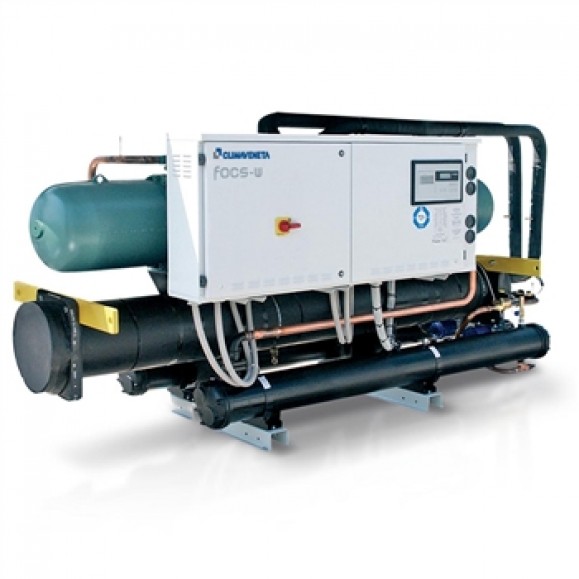

FOCS-W 0401 – 1902

Water cooled chiller Cooling capacity 87,0 – 447 kW

NECS 0202T - 0612T
Indoor unit for the production of chilled water with semi-hermetic screw compressors optimized for R134a, thermostatic expansion valve, shell and tube condenser and evaporator. Base and supporting structure and panels are of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation. The high performance’s level is achieved thanks to the accurate sizing of all internal components.

Version

  • B – Basic

Configurations

  • – – Basic function
  • D – Partial condensing heat recovery function
  • R – Total condensing heat recovery function

Features

  • FLEXIBILITY
    Flexibility in applications thanks to the many available functions and versions
  • ADAPTABILITY
    Adaptability at the building’s cooling request thanks to the continuous capacity regulation, assured by sophisticated control’s logic.

Accessory

  • Compressor power factor correction
  • Electronic expansion valve
  • Remote control keyboard (distance to 200m and to 500m)
  • Set-up for remote connectivity with ModBus, Echelon LonTalk, Bacnet protocol board

Controls

  • W3000TE

The brand new W3000TE controller offers advanced functions and algorithms. The large format keyboard and the wide LCD display favour an easy and safe access to the machine setup and a complete view of unit’s staus. The assessment and intervention on the unit is managed through a multi-level menu, with selectable user’s language. The led icons immediately show the operating status of the circuits, as well as of the fans and of the water pumps (if present). An optional extra is the touch screen interface: 7.0” WVGA colour display with adjustable LED backlight and front USB port. The touch screen technology allows intuitive navigation between the various screens, safe access to the data with a three-level password protection as well as the graphic display of the performance of some monitored measurements. The diagnostics comprises a complete alarm management system, with “black box” (via PC) and alarm log functions (via display or also PC) for a better analysis of the unit performance. For the systems made of several units, the adjustment of the resources is performed by optional proprietary devices. Consumption metering and performance measurement are possible as well. Supervision can be easily developed via proprietary devices or the integration in third party systems by means of the most common protocols as ModBus, Bacnet-over-IP, Echelon LonWorks, Bacnet MS/TP protocols. Compatibility with the remote keyboard managing up to 8 units. The presence of the programmable timer allows the creation of an operating profile containing up to 4 typical days and 10 time bands. The control is characterized by the continuous modulation of the unit capacity, based on PID algorithms and referring to the water delivery temperature. Optionally (VPF package), capacity modulation can be integrated with hydraulic flow modulation, thanks to inverter-driven pumps and to specific resources for the hydraulic circuit.
