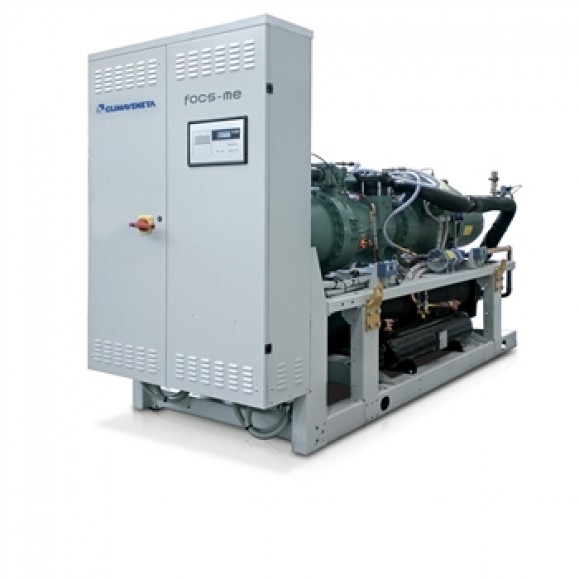

FOCS-ME 1001 – 9604

Condenserless unit Cooling capacity 219 – 2240 kW

NECS 0202T - 0612T
Indoor unit for the production of chilled water combined with a remote condenser, with semi-hermetic screw compressors optimized for R134a, shell and tube evaporator designed by Climaveneta and thermostatic expansion valve. Base and supporting structure and panels are of galvanized epoxy powder coated steel with increased thickness. Flexible and reliable unit; it easily adapts itself to different thermal load conditions thanks to the precise thermoregulation. The high performance’s level is achieved thanks to the accurate sizing of all internal components.

Version

  • B – Basic

Features

  • COMPACTNESS
    Compactness in terms of overall size and weight, helping installation and working on site
  • ADAPTABILITY
    Adaptability at the building’s cooling request thanks to the continuous capacity regulation, assured by sophisticated control’s logic.
  • WIDE OPERATING RANGE
    Extensive range of operation with remote condenser operating up to 46°C air temperature
  • SILENT OPERATION
    Extremely silent operation thanks to the accurate unit’s design. Optional integral acoustic enclosure, reduces more the sound level beyond the best on market

Accessory

  • Integral acoustical enclosure (type base or plus)
  • Electronic expansion valve
  • Soft start
  • Set-up for remote connectivity with ModBus, Echelon, Bacnet, Bacnet over-IP.
  • Remote control keyboard (distance to 200m and to 500m)

Controls

  • W3000SE Large

The W3000 SE Large controller offers advanced functions and algorithms. The keypad is generously sized with full operating status display. The commands and detailed LCD display make access to the unit’s settings easy and safe. These resources allow to consult and intervene on the unit by means of a multi-level menu, with selectable language setting. The diagnostics includes a complete alarm management, with the „black-box” and alarm logging functions for enhanced analysis of the unit operation. For multiple units’ systems, the regulation of the resources, via optional proprietary devices, can be implemented. Energy metering, for both consumption and capacity, can also be developed. Supervision can be easily developed via proprietary devices or the integration in third party systems by means of the most common protocols as ModBus, Bacnet, Bacnet-over-IP, Echelon LonWorks. Compatibility with the remote keyboard managing up to 10 units. Availability of an internal real time clock for operation scheduling (4-day profiles with 10 hour belts). The regulation features the continuous modulation of capacity, based on a dynamic dead band and referring to the leaving water temperature. As alternative, step-wise regulation is also available, referred to the return water temperature with selectable proportional- or proportional-integral logic.
