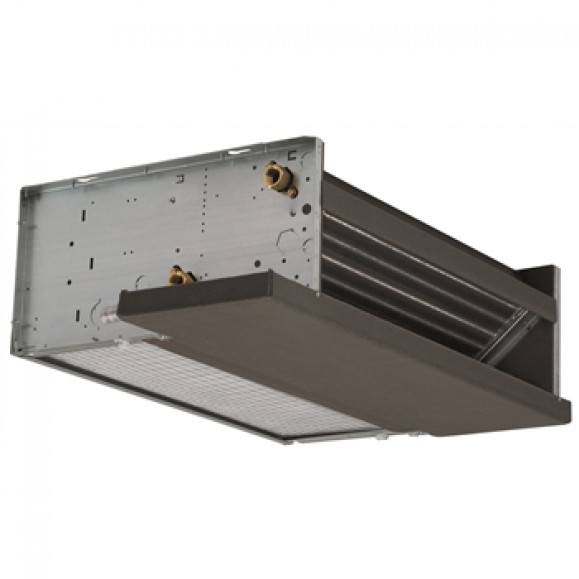

a-LIFE2 HP 0302 – 1204

High head fan-coil for professional application built-in version Total capacity in cooling mode 2,88 – 8,60 kW

NECS 0202T - 0612T
a-LIFE2 HP are professional high-head fan coils by Climaveneta. The enhanced motor and the built-in version make these units ideal for ducted systems in tertiary and commercial sectors.

Version

  • DFIO – built-in version, front air intake, horizontal installation
  • DFIV – built-in version, front air intake, vertical installation
  • DLIO – built-in version, low air intake, horizontal installation
  • DLIV – built-in version, low air intake, vertical installation.

Features

  • High pressure centrifugal fan unit for ducted system;
  • Multi speed directly coupled electric motor;
  • Configurations for 2 and 4 pipe Systems.
  • Structure in hot galvanised steel for maximum resistance to rust;
  • Left-hand water connections, easy convertible into right-hand, by simply turning the coil
  • Air filter on all models.
  • Auxiliary drain pan with thermal insulation for all Horizontal versions, made of galvanized steel.
  • Plastic drain pan for all Vertical versions.

Accessory

  • Hot water coil kit
  • Main coil 2-way/3-way valve unit
  • Main and additional coil valve unit ON/OFF, PWM, 0-10 V, 3 points 2-way or 3-way
  • Kit control board to manage 0-10V or 3 points modulating valve unit
  • Kit RS485 – interface for Building Management System
  • Kit Bus Adapter for BMS
  • Kit Gateway interface for MyHome Bticino System
  • Interface SPB Kit
  • Heating element kit
  • Condensate drain pump
  • Horizontal and vertical fan coil auxiliary tray
  • Hose kit
  • Straight and angular (90°) plenum kits for air inlet
  • Plenum kit with round, straight or 90° air ducts.

Controls

  • ATW wall mounted
    Mode button (OFF/summer/winter/AUTO), fan speed button (Max/Med/Min/AUTO). Thermostat with set point regulation. ON/OFF valve unit control (summer/winter for 2 and 4 pipes installation). Control of traditional or PWM modulating valve units. Room temperature probe and water temperature probe. Digital input configurable as: window contact, economy, heating or cooling remote changeover, periodic ventilation. Configuration dip switch. TTL serial port with Modbus protocol for installation in BMS.
  • MTW wall mounted
    Fan speed slider, mode slider (OFF/summer/winter). Thermostat with set point regulation. ON/OFF valve unit control (summer/winter for 2 pipes installation), ON/OFF second valve unit control (winter for 4 pipes installation). Room temperature probe. Remote water temperature probe.
  • PSW wall mounted
    Fan speed slider, mode slider (OFF/summer/winter). ON/OFF valve unit control (summer/winter for 2 pipes installation), ON/OFF second valve unit control (winter for 4 pipes installation). Remote water temperature probe.
  • Remote Control EKW
    User interface for selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control of main and additional coil valve unit (summer/winter – 2 and 4 pipes installation) . Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points . Air and water temperature probe. Multifunction digital input configurable by user. Configuration dip switch. Modbus protocol for installation in BMS (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE2 fan coil units. Easy control installation thanks to 2 wires connection.
  • iK control with LCD screen
    Interface with LCD screen with user-friendly icons. Control kit for universal installation: wall-mounted as well as plug-in. Selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control iK could function manually or with weekly timer regulation configurable by the customer. Control of main coil valve unit (summer/winter – 2 pipes) and additional coil (winter – 4 pipes). Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points (supply 230 VAC or 24V) . Parameters configurable directly by user. Modbus protocol for installation in Building Management System (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE2 fan coil units. Easy control installation thanks to 2 wires connection through HB power board
  • Remote control
    Set-point regulation. Selection of functioning mode (cool, heat, dehumidify, fan), fan speed (Max, Med, Min, AUTO). User-sfriendly compact remote control with fine aethetics.

Controls

  • ATW wall mounted
    Mode button (OFF/summer/winter/AUTO), fan speed button (Max/Med/Min/AUTO). Thermostat with set point regulation. ON/OFF valve unit control (summer/winter for 2 and 4 pipes installation). Control of traditional or PWM modulating valve units. Room temperature probe and water temperature probe. Digital input configurable as: window contact, economy, heating or cooling remote changeover, periodic ventilation. Configuration dip switch. TTL serial port with Modbus protocol for installation in BMS.
  • MTW wall mounted
    Fan speed slider, mode slider (OFF/summer/winter). Thermostat with set point regulation. ON/OFF valve unit control (summer/winter for 2 pipes installation), ON/OFF second valve unit control (winter for 4 pipes installation). Room temperature probe. Remote water temperature probe.
  • PSW wall mounted
    Fan speed slider, mode slider (OFF/summer/winter). ON/OFF valve unit control (summer/winter for 2 pipes installation), ON/OFF second valve unit control (winter for 4 pipes installation). Remote water temperature probe.
  • Remote Control EKW
    User interface for selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control of main and additional coil valve unit (summer/winter – 2 and 4 pipes installation) . Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points . Air and water temperature probe. Multifunction digital input configurable by user. Configuration dip switch. Modbus protocol for installation in BMS (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE2 fan coil units. Easy control installation thanks to 2 wires connection.
  • iK control with LCD screen
    Interface with LCD screen with user-friendly icons. Control kit for universal installation: wall-mounted as well as plug-in. Selection of functioning mode (OFF/summer/winter/AUTO), fan speed (Max/Med/Min/AUTO), temperature set. Control iK could function manually or with weekly timer regulation configurable by the customer. Control of main coil valve unit (summer/winter – 2 pipes) and additional coil (winter – 4 pipes). Management of traditional ON/OFF valve unit or modulating valve unit 0-10V or 3 points (supply 230 VAC or 24V) . Parameters configurable directly by user. Modbus protocol for installation in Building Management System (e.g. Idrorelax system by Climaveneta). Installation and management of Master-Slave system up to 8 LIFE2 fan coil units. Easy control installation thanks to 2 wires connection through HB power board
  • Remote control
    Set-point regulation. Selection of functioning mode (cool, heat, dehumidify, fan), fan speed (Max, Med, Min, AUTO). User-sfriendly compact remote control with fine aethetics.
